首頁 > 產品中心 > 噴砂機系列噴砂機系列

管道外壁自動噴砂機系列

管道外壁自動噴砂機

適用范圍 Applicable scope

管類工件,如:鋼管、圓鋼、拉桿、螺桿、大型圓柱、圓筒類、圓柱型工件;采用雙槍(可按要求多槍)及旋風式除塵器和光電感應功能,提高了生產效率及大大的減少了維修率。 (此機型需預定)

The kind of pipe  workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)



主要技術參數 Main technical parameters



機器型號 Model

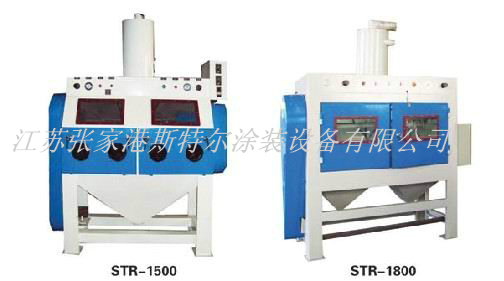

STR-1500管道外壁自動噴砂機
STR-1800輥傳動雙槍自動噴砂機
工作艙尺寸 Working class size(mm)
1000×900×900
1800×900×1000
整機尺寸 Complete machine size(mm)
1200×900×2900
1900×900×2900
壓縮空氣源 Compressed air source
2-8bar(kg/cm2)
2-8barkg/cm2
電源 Power
220v  50Hz
220v  50Hz
變頻電機調速器 Governor
250W×2
250W×2
分離器電機 Separator motor
380v  50Hz  4kw
220v  50Hz  1.1kw
分離器風量 Air separator
35m3/min
35m3/min
機器重量 Machine weight
900kg
900kg

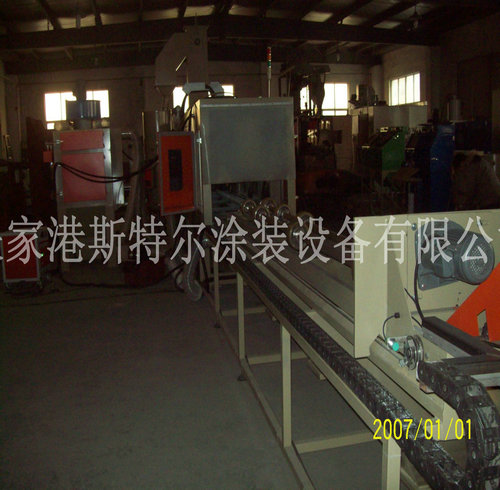

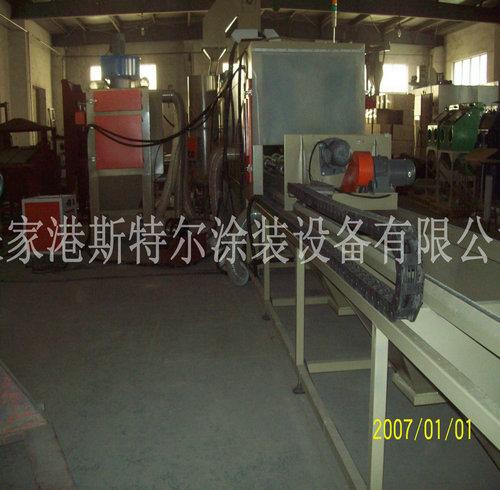

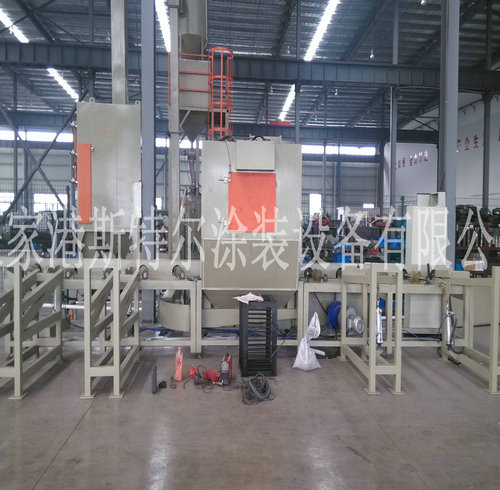

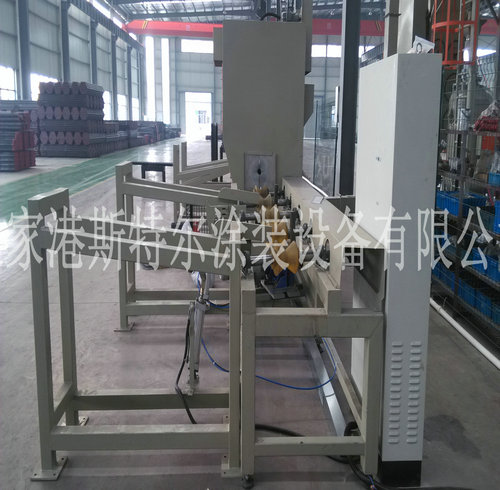

部份管道外壁自動噴砂機使用現場案例(具體視頻中心內瀏覽)
