產品搜索

首頁 > 產品中心 > 噴砂機系列噴砂機系列

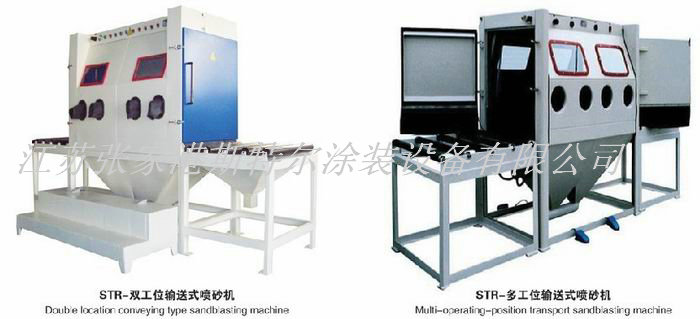

輸送式手動噴砂機雙工位噴砂機系列

輸送式手動噴砂機(雙工為噴砂機 多工位噴砂機

產品特點 Product features

1. 設計新穎,外形美觀,環保效果好;

2. 可調式旋風分離器,能將可用磨料與微小粉塵分離,好的磨料繼續使用;

3. 主要零部件采用優質進口零件,使用壽命長;

4. 加工工件表面均勻;

5. 多工位設計;操作員可同時操作噴砂。根據客戶需求,可選擇手動或自動 ;可按客戶要求定做!

1. Novel design , beautiful shape, good environmental protection effect;

2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;

3. The main components uses the high quality import parts, long service life;

4. Machining surface evenly;

5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.



適用范圍 Applicable scope

板材,電腦外殼,音響面板,三明治烤盤等平面及方體工件的噴砂加工。

Plate, the computer case, music panels, sandwich baking dish wait for plane and  workpiece of sandblasting processing.



主要技術參數 Main technical parameters

機器型號 Model

STR-多工位輸送式噴砂機

整機尺寸 Complete machine size(mm)

3000×1000×1700

工作空間 Work space(mm)

2000×1000×800

外輸送尺寸 Conveying the size(mm)

500×1000×10002件)

除塵箱尺寸 Dedust box sizes(mm)

600×600×1800

分離器電機 Separator motor

220V 50HZ  550W

分離器風量 Separator air volume

8.5m3/min

壓縮空氣源 Compressed air source

2-8bar(kg/cm2)

Spray gun

2

Floodlight

兩盞30W防爆燈

機器重量 Machine weight

550kg

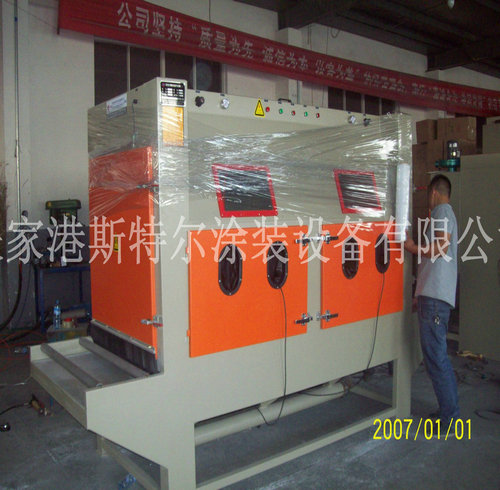

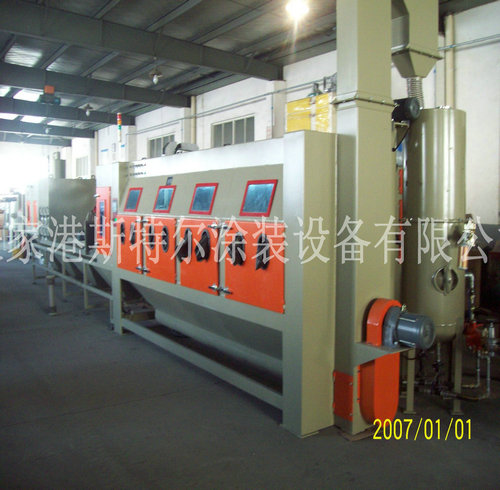

部份輸送式手動噴砂機(雙工為噴砂機 多工位噴砂機)使用案例:
